Electromyography

Support for Electromyography (EMG) was developed as a BIDS Extension Proposal. Please see Citing BIDS on how to appropriately credit this extension when referring to it in the context of the academic literature.

Example datasets

Electromyography datasets formatted according to this specification are available on the BIDS examples repository and can be emulated when curating new datasets.

EMG data

Template:

sub-<label>/
    [ses-<label>/]
        emg/
            sub-<label>[_ses-<label>]_task-<label>[_acq-<label>][_run-<index>][_recording-<label>]_emg.bdf
            sub-<label>[_ses-<label>]_task-<label>[_acq-<label>][_run-<index>][_recording-<label>]_emg.edf
            sub-<label>[_ses-<label>]_task-<label>[_acq-<label>][_run-<index>][_recording-<label>]_emg.json
            sub-<label>[_ses-<label>]_task-<label>[_acq-<label>][_run-<index>][_recording-<label>]_events.json
            sub-<label>[_ses-<label>]_task-<label>[_acq-<label>][_run-<index>][_recording-<label>]_events.tsv

Legend:

For more information about filename elements (for example, entities, suffixes, extensions), follow the links embedded in the filename template.
<matches> is a placeholder to denote an arbitrary (and valid) sequence of entities and labels at the beginning of the filename (only BIDS "raw").
<source-entities> is a placeholder to denote an arbitrary sequence of entities and labels at the beginning of the filename matching a source file from which the file derives (only BIDS-Derivatives).
Filename entities or directories between square brackets (for example, [_ses-<label>]) are OPTIONAL.
Some entities may only allow specific values, in which case those values are listed in <>, separated by |.
_<suffix> means that there are several (>6) valid suffixes for this filename pattern.
.<extension> means that there are several (>6) valid extensions for this file type.
[.gz] means that both the unzipped and gzipped versions of the extension are valid.

EMG device manufacturers use a variety of formats for storing raw data, and there is no single standard that all researchers agree on. For BIDS, EMG data MUST be stored in one of the following formats:

Format	Extension(s)	Description
Biosemi data format	`.bdf`	Each recording consists of a single `.bdf` file. `bdf+` files are permitted. The capital `.BDF` extension MUST NOT be used.
European data format	`.edf`	Each recording consists of a single `.edf` file. `edf+` files are permitted. The capital `.EDF` extension MUST NOT be used.

EDF, EDF+, BDF, and BDF+ are all open data formats with broad support in various programming languages for reading and writing the files. BDF and BDF+ formats store data samples using 3 bytes instead of 2 bytes as in EDF and EDF+ formats, allowing for greater resolution. EDF+/BDF+ accommodate more header metadata than EDF/BDF, and support storing event or annotation information in the file. Thus it is RECOMMENDED to use the BDF+ data format.

The recording-<label> entity MAY be used to indicate simultaneous acquisition of data from multiple EMG devices, in cases where the devices store data in separate data files. If separate devices are being used with separate sampling rates, start times, or other acquisition parameters, the recording-<label> entity MUST be used to distinguish between them. The synchronization of data from multiple devices SHOULD be described in the Scans (scans.tsv) file, using the acq_time entity.

In cases where the allowed formats do not encode all relevant metadata present in the device manufacturer's native file format, we encourage users to provide the additional metadata in the sidecar JSON file.

Terminology: Electrodes vs. Channels

For proper documentation of EMG recording metadata it is important to understand the difference between an electrode and a channel: an EMG electrode is a single point of electrical contact with the body, whereas a channel is the combination of the analog differential amplifier (which combines signals from two electrode sources) and the analog-to-digital converter, which results in a potential difference (voltage) that forms the actual data stored in the EMG dataset. We employ the following short definitions:

Electrode = A single point of contact between the acquisition system and the recording site (whether on the skin surface or intramuscular). Multiple electrodes can be organized as arrays, grids, leads, strips, probes, shafts, and so on.
Channel = A single analog-to-digital converter in the recording system that regularly samples the value of a transducer, which results in the signal being represented as a time series in the digitized data. This can be connected to two electrodes (to measure the potential difference between them), a magnetic field or magnetic gradient sensor, temperature sensor, accelerometer, and so forth.

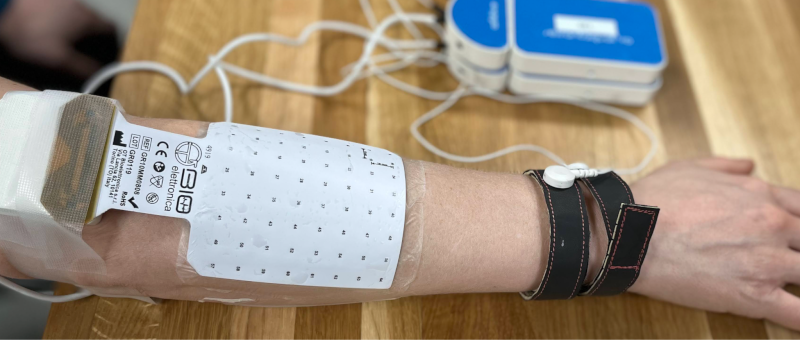

This distinction is especially important for EMG because a common type of EMG device (often erroneously called a "bipolar electrode") comprises two electrodes at a fixed distance, wired such that the electrode pair is necessarily converted to a single channel by the amplifier (in other words, one of the electrodes necessarily acts as the reference for the other). In other kinds of devices, researchers may have control over which electrode(s) to use as the reference for each channel.

Note also that although the reference and ground electrodes are often referred to as channels, in most common EMG systems they are not recorded by themselves. Therefore they are usually not represented as channels in the data.

Describing sensor locations

Each EMG-BIDS dataset SHOULD include sensor location information that is as accurate as possible given the measurement means available to the researcher(s). Below are examples ranging from most accurate to least accurate, which can serve as a guide to where sensor placement information should be stored in the dataset.

Electrode locations and anatomical landmarks are digitized with a 3D localizer device such as Polhemus FasTrak or a 3D scanner. 3D coordinates for each electrode are given in x,y,z columns of *_electrodes.tsv, and the coordinate system definition is given in *_coordsystem.json.
Electrode locations are measured relative to nearby anatomical landmarks using a flexible measuring tape. 2D or 3D coordinates for each electrode are given in x, y, and (optionally) z columns of *_electrodes.tsv, and the coordinate system definition in *_coordsystem.json specifies the axis directions with reference to those anatomical landmarks.
The arrangement of electrodes in a group or grid is measured (or known from the device manufacturer), and is provided in x,y,z columns of *_electrodes.tsv, with a device-internal "child" coordinate system provided in *_coordsystem.json. An anatomically-defined "parent" coordinate system is also defined in the same *_coordsystem.json file, and the name and coordinates of one electrode (the "anchor" electrode) from each "child" group or grid is provided in the "parent" coordinate system. This allows the approximate anatomical locations of all electrodes to be calculated by treating the device-internal coordinates as offsets from the anchor coordinate.
Individual electrode locations are chosen by visual inspection, palpation, or functional localizers. No measured coordinates are provided; placement information is given either in the EMGPlacementSchemeDescription field of *_emg.json (when the placement approach is the same for all sensors), or in the placement_scheme column of *_channels.tsv (when the placement approach varied across sensors).

More details on each of these scenarios is given below in the Channels description, Electrodes description, and Coordinate system sections.

A fifth scenario unique to EMG involves location information that is fairly accurate (as in scenarios (1) and (2) above) but it locates bipolar sensor devices rather than electrodes. In this case, researchers SHOULD provide *_electrodes.tsv even though information about the individual electrode contacts is not available. Rather, each entry from *_channels.tsv should have a corresponding row in *_electrodes.tsv where the location information is given, and *_coordsystem.json should also be provided (as in scenarios (1) or (2) above).

Sidecar JSON (`*_emg.json`)

For consistency between studies and institutions, we encourage users to extract the values of metadata fields from the actual raw data. Whenever possible, please avoid using ad hoc wording.

These fields MUST be present:

Key name	Requirement Level	Data type	Description
EMGPlacementScheme	REQUIRED	string	The way in which electrode placement locations were determined. If electrode locations are provided as coordinates in `_electrodes.tsv` in reference to a coordinate system defined in `_coordsystem.json`, then specify `"Measured"`. If approach to placement varied across sensor devices, specify `"ChannelSpecific"` and include placement details in the `placement_scheme` column of `*_channels.tsv`. If a standardized electrode placement procedure (for example, SENIAM 8) was followed, or if an ad-hoc procedure was followed, specify `"Other"` and provide details in `EMGPlacementSchemeDescription`. Must be one of: `"ChannelSpecific"`, `"Measured"`, `"Other"`.
EMGReference	REQUIRED	string	Description of the approach to signal referencing. If the same signal source is used as reference for all channels (often called a "monopolar" recording), specify the signal source (typically an electrode name). If different channels have different reference electrodes, this field SHOULD contain the string `"ChannelSpecific"` and each channel's reference SHOULD be given in the `reference` column of `_channels.tsv`. For bipolar recording devices (where a single sensor unit contains two rigidly separated contacts, and the paired contacts are not listed independently in `_electrodes.tsv`), this field SHOULD be `"Bipolar"`.
SamplingFrequency	REQUIRED	number	Sampling frequency (in Hz) of all the data in the recording, regardless of their type (for example, `2400`). The sampling frequency of data channels that deviate from the main sampling frequency SHOULD be specified in the `channels.tsv` file.
PowerLineFrequency	REQUIRED	number or `"n/a"`	Frequency (in Hz) of the power grid at the geographical location of the instrument (for example, `50` or `60`).
SoftwareFilters	REQUIRED	object of objects or `"n/a"`	Object of temporal software filters applied, or `"n/a"` if the data is not available. Each key-value pair in the JSON object is a name of the filter and an object in which its parameters are defined as key-value pairs (for example, `{"Anti-aliasing filter": {"half-amplitude cutoff (Hz)": 500, "Roll-off": "6dB/Octave"}}`).

These fields SHOULD be present:

Key name	Requirement Level	Data type	Description
ElectrodeMaterial	RECOMMENDED	string	Material of the electrode (for example, `Tin`, `Ag/AgCl`, `Gold`).
ElectrodeType	RECOMMENDED	string	Type of the electrode (for example, cup, ring, clip-on, wire, needle).
EMGChannelCount	RECOMMENDED	integer	Number of EMG channels. Must be a number greater than or equal to 0.
EMGGround	RECOMMENDED	string	Description of the location of the ground electrode (for example, `"right radial styloid process"`).
EMGPlacementSchemeDescription	RECOMMENDED	string	Additional details of the approach to EMG sensor placement. Descriptions SHOULD NOT simply give the name of the targeted muscle (use the `target_muscle` column in `_channels.tsv` for that), but rather SHOULD reflect the process used by the researcher(s) when placing electrodes. For example, EMG electrode sites may be chosen by measured distance* from anatomical landmarks, by visual reference to (parts of) target muscles, by palpation of the skin to locate target muscles, or by functional localization (temporary electrode placement at several sites during prescribed behavior, until a site yielding strong EMG signal is found).
EpochLength	RECOMMENDED	number	Duration of individual epochs in seconds (for example, `1`) in case of epoched data. If recording was continuous or discontinuous, leave out the field. Must be a number greater than or equal to 0.
HardwareFilters	RECOMMENDED	object of objects or `"n/a"`	Object of temporal hardware filters applied, or `"n/a"` if the data is not available. Each key-value pair in the JSON object is a name of the filter and an object in which its parameters are defined as key-value pairs. For example, `{"Highpass RC filter": {"Half amplitude cutoff (Hz)": 0.0159, "Roll-off": "6dB/Octave"}}`.
InterelectrodeDistance	RECOMMENDED	number	Distance between pairs or grids of electrodes rigidly attached to the same sensor device.
RecordingDuration	RECOMMENDED	number	Length of the recording in seconds (for example, `3600`).
RecordingType	RECOMMENDED	string	Defines whether the recording is `"continuous"`, `"discontinuous"`, or `"epoched"`, where `"epoched"` is limited to time windows about events of interest (for example, stimulus presentations or subject responses). Must be one of: `"continuous"`, `"epoched"`, `"discontinuous"`.
SubjectArtefactDescription	RECOMMENDED	string	Freeform description of the observed subject artifact and its possible cause (for example, `"Vagus Nerve Stimulator"`, `"non-removable implant"`). If this field is set to `"n/a"`, it will be interpreted as absence of major source of artifacts except cardiac and blinks.
TriggerChannelCount	RECOMMENDED	integer	Number of channels for digital (binary TTL) triggers or analog equivalents (TTL in volt). Corresponds to the `TRIG` channel type. Must be a number greater than or equal to 0.

Note the RecordingType, which depends on whether the data stream on disk is interrupted or not. Continuous data is by definition 1 segment without interruption. Epoched data consists of multiple segments that all have the same length (for example, corresponding to trials) and that have gaps in between. Discontinuous data consists of multiple segments of different length, for example due to a pause in the acquisition.

These fields MAY be present:

Key name	Requirement Level	Data type	Description
SkinPreparation	OPTIONAL	string	How skin was prepared prior to sensor device placement, for example, `"alcohol wipe"` or `"abrasive gel"`.

Note that the date and time information SHOULD be stored in the study key file (scans.tsv). Date time information MUST be expressed as indicated in Units.

Hardware information

Key name	Requirement Level	Data type	Description
Manufacturer	RECOMMENDED	string	Manufacturer of the equipment that produced the measurements.
ManufacturersModelName	RECOMMENDED	string	Manufacturer's model name of the equipment that produced the measurements.
SoftwareVersions	RECOMMENDED	string	Manufacturer's designation of software version of the equipment that produced the measurements.
DeviceSerialNumber	RECOMMENDED	string	The serial number of the equipment that produced the measurements. A pseudonym can also be used to prevent the equipment from being identifiable, so long as each pseudonym is unique within the dataset.
ElectrodeManufacturer	RECOMMENDED	string	Can be used if all electrodes are of the same manufacturer (for example, `"AD-TECH"`, `"DIXI"`). If electrodes of different manufacturers are used, please use the corresponding table in the `_electrodes.tsv` file.
ElectrodeManufacturersModelName	RECOMMENDED	string	If different electrode types are used, please use the corresponding table in the `_electrodes.tsv` file.

Task information

Key name	Requirement Level	Data type	Description
TaskName	REQUIRED	string	Name of the task. No two tasks should have the same name. The task label included in the filename MAY be derived from this `"TaskName"` field by removing all non-alphanumeric or `+` characters (that is, all except those matching `[0-9a-zA-Z+]`), and potentially replacing spaces with `+` to ease readability. For example `"TaskName"` `"faces n-back"` or `"head nodding"` could correspond to task labels `faces+n+back` or `facesnback` and `head+nodding` or `headnodding`, respectively. A RECOMMENDED convention is to name resting state task using labels beginning with `rest`.
TaskDescription	RECOMMENDED	string	Longer description of the task.
Instructions	RECOMMENDED	string	Text of the instructions given to participants before the recording. This is especially important in context of resting state recordings, to distinguish resting positions with different postures (for example, `"seated"`, `"reclined"`).

Note that the TaskName field does not have to be a "behavioral task" that subjects perform, but can reflect some information about the conditions present when the data was acquired (for example, "treatment", "control", or "sleep").

Institution information

Key name	Requirement Level	Data type	Description
InstitutionName	RECOMMENDED	string	The name of the institution in charge of the equipment that produced the measurements.
InstitutionAddress	RECOMMENDED	string	The address of the institution in charge of the equipment that produced the measurements.
InstitutionalDepartmentName	RECOMMENDED	string	The department in the institution in charge of the equipment that produced the measurements.

Example `*_emg.json`

{
  "EMGChannelCount":4,
  "EMGGround":"n/a",
  "EMGPlacementScheme":"Other",
  "EMGPlacementSchemeDescription":"midpoint between cubital fossa and radial styloid process",
  "EMGReference":"4 reference electrodes built-in to device, placed near the midpoint between radial and ulnar styloid processes on the volar surface",
  "HardwareFilters":{"Highpass RC filter": {"Half amplitude cutoff (Hz)": 0.0159, "Roll-off": "6dBOctave"}},
  "InstitutionAddress":"9500 Gilman Drive 0559, La Jolla, CA 92093",
  "InstitutionalDepartmentName":"Swartz Center for Computational Neuroscience",
  "InstitutionName":"University of California San Diego",
  "Instructions":"Jump straight upward as high as you can, while keeping your arms at your sides.",
  "Manufacturer":"Delsys",
  "ManufacturersModelName":"Trigno® Galileo",
  "PowerLineFrequency":60,
  "RecordingDuration":123.456,
  "RecordingType":"continuous",
  "SamplingFrequency":1000,
  "SoftwareFilters":"n/a",
  "TaskDescription":"jumping with stationary arms",
  "TaskName":"jumping"
}

Channels description (`*_channels.tsv`)

Template:

sub-<label>/
    [ses-<label>/]
        emg/
            sub-<label>[_ses-<label>]_task-<label>[_acq-<label>][_run-<index>]_channels.json
            sub-<label>[_ses-<label>]_task-<label>[_acq-<label>][_run-<index>]_channels.tsv

Legend:

For more information about filename elements (for example, entities, suffixes, extensions), follow the links embedded in the filename template.
<matches> is a placeholder to denote an arbitrary (and valid) sequence of entities and labels at the beginning of the filename (only BIDS "raw").
<source-entities> is a placeholder to denote an arbitrary sequence of entities and labels at the beginning of the filename matching a source file from which the file derives (only BIDS-Derivatives).
Filename entities or directories between square brackets (for example, [_ses-<label>]) are OPTIONAL.
Some entities may only allow specific values, in which case those values are listed in <>, separated by |.
_<suffix> means that there are several (>6) valid suffixes for this filename pattern.
.<extension> means that there are several (>6) valid extensions for this file type.
[.gz] means that both the unzipped and gzipped versions of the extension are valid.

A channel is represented by one time series recorded with the recording system. Although this information can often be extracted from the EMG recording, listing it in a simple .tsv document makes it easy to browse or search (for example, searching for recordings with a sampling frequency of >=1000 Hz). Hence, the *_channels.tsv file is RECOMMENDED. Channels SHOULD appear in the table in the same order they do in the EMG data file. Additional columns MAY be included to provide additional information about the channels. Note that electrode positions SHOULD NOT be added to this file but to *_electrodes.tsv.

The columns of the channels description table stored in *_channels.tsv are:

Column name	Requirement Level	Data type	Description
name	REQUIRED	string	Label of the channel. The combination of `name` and `group` MUST be unique. This column must appear first in the file.
type	REQUIRED	string	Type of channel; MUST use the channel types listed below. Note that the type MUST be in upper-case. This column must appear second in the file. For a list of valid values for this column, see the associated glossary entry.
units	REQUIRED	string	Physical unit of the value represented in this channel, for example, `V` for Volt, or `fT/cm` for femto Tesla per centimeter (see Units). This column must appear third in the file.
description	OPTIONAL	string	Brief free-text description of the channel, or other information of interest. This column may appear anywhere in the file.
sampling_frequency	OPTIONAL	number	Sampling rate of the channel in Hz. This column may appear anywhere in the file.
signal_electrode	RECOMMENDED	string	The name of the electrode from which the `reference`'s signal is subtracted to yield the channel's data. For channels originating from bipolar devices, the `signal_electrode` MAY be the same as the channel `name`. This column may appear anywhere in the file.
reference	RECOMMENDED	string	The reference for the given channel. When the reference is an electrode in `*_electrodes.tsv`, use the name of that electrode. For channels originating from bipolar devices, use `"bipolar"`. For non-EMG channels (for example, trigger channels, microphones) use `"n/a"`. This column may appear anywhere in the file.
group	RECOMMENDED	string or number	Which group of channels this channel belongs to (typically this indicates channels on the same grid, strip, or other device). The combination of `name` and `group` MUST be unique. This column may appear anywhere in the file.
target_muscle	RECOMMENDED	string	Name of the muscle(s) from which the EMG signal in this channel is believed to originate. When exact muscle is unknown (such as when using electrode grids that cover multiple muscles), groups of muscles may be named instead (for example "flexors of the left forearm"). This column may appear anywhere in the file.
placement_scheme	RECOMMENDED	string	A description of the electrode placement procedure used. See description of the `EMGPlacementScheme` field in `*_emg.json`. This column may appear anywhere in the file. Must be one of: `"measured"`, `"other"`.
placement_description	RECOMMENDED	string	Additional details of the approach to EMG sensor placement. See description of the `EMGPlacementSchemeDescription` field in `*_emg.json`. This column may appear anywhere in the file.
interelectrode_distance	RECOMMENDED	number	Distance between adjacent electrodes (in a pair or grid) that are rigidly attached to the same sensor device, or between the `signal_electrode` and its `reference` when each is independently placed. This column may appear anywhere in the file.
low_cutoff	OPTIONAL	number	Frequencies used for the high-pass filter applied to the channel in Hz. If no high-pass filter applied, use `n/a`. This column may appear anywhere in the file.
high_cutoff	OPTIONAL	number	Frequencies used for the low-pass filter applied to the channel in Hz. If no low-pass filter applied, use `n/a`. Note that hardware anti-aliasing in A/D conversion of all MEG/EEG/EMG electronics applies a low-pass filter; specify its frequency here if applicable. This column may appear anywhere in the file. Must be a number greater than or equal to 0.
notch	OPTIONAL	string	Frequencies used for the notch filter applied to the channel, in Hz. If notch filters are applied at multiple frequencies, these frequencies MAY be specified as a list, for example, `[60, 120, 180]`. If no notch filter was applied, use `n/a`. This column may appear anywhere in the file.
status	OPTIONAL	string	Data quality observed on the channel. A channel is considered `bad` if its data quality is compromised by excessive noise. If quality is unknown, then a value of `n/a` may be used. Description of noise type SHOULD be provided in `[status_description]`. This column may appear anywhere in the file. Must be one of: `"good"`, `"bad"`.
status_description	OPTIONAL	string	Freeform text description of noise or artifact affecting data quality on the channel. It is meant to explain why the channel was declared bad in the `status` column. This column may appear anywhere in the file.
Additional Columns	OPTIONAL	`n/a`	Additional columns are allowed if they are defined in the associated metadata file.

Restricted keyword list for field type in alphabetic order (shared with the MEG and EEG modality; however, only types that are common in EMG data are listed here). Note that upper-case is REQUIRED:

Keyword	Description
VEOG	Vertical EOG (electrooculogram)
HEOG	Horizontal EOG
EOG	Generic EOG channel if HEOG or VEOG information not available
ECG	ElectroCardioGram (heart)
EMG	ElectroMyoGram (muscle)
TRIG	Analog (TTL in Volt) or digital (binary TTL) trigger channel
MISC	Miscellaneous
SYSCLOCK	Elapsed time since trial/recording start, as provided by the recording device.
LATENCY	Latency of sample, in seconds from recording onset, typically from an external clock source.
REF	Reference channel

Examples of free-form text for field description:

n/a
stimulus
response
skin conductance
battery status

Example `*_channels.tsv`

See also the corresponding electrodes.tsv example.

name  type  units  signal_electrode  reference  target_muscle
emg1  EMG   V      E1                E2         anterior belly of the digastric
emg2  EMG   V      E3                E4         levator angulis oris, zygomaticus major
emg3  EMG   V      E5                E6         platysma
emg4  EMG   V      E7                E8         obicularis oris

Electrodes description (`*_electrodes.tsv`)

Template:

sub-<label>/
    [ses-<label>/]
        emg/
            sub-<label>[_ses-<label>][_task-<label>][_acq-<label>][_run-<index>]_electrodes.json
            sub-<label>[_ses-<label>][_task-<label>][_acq-<label>][_run-<index>]_electrodes.tsv

Legend:

For more information about filename elements (for example, entities, suffixes, extensions), follow the links embedded in the filename template.
<matches> is a placeholder to denote an arbitrary (and valid) sequence of entities and labels at the beginning of the filename (only BIDS "raw").
<source-entities> is a placeholder to denote an arbitrary sequence of entities and labels at the beginning of the filename matching a source file from which the file derives (only BIDS-Derivatives).
Filename entities or directories between square brackets (for example, [_ses-<label>]) are OPTIONAL.
Some entities may only allow specific values, in which case those values are listed in <>, separated by |.
_<suffix> means that there are several (>6) valid suffixes for this filename pattern.
.<extension> means that there are several (>6) valid extensions for this file type.
[.gz] means that both the unzipped and gzipped versions of the extension are valid.

File that gives the measured location, size, and other properties of EMG electrodes. If an *_electrodes.tsv file is specified, a *_coordsystem.json file MUST be specified as well.

Electrode locations may be specified in one of four ways:

Coordinates and landmarks digitized in situ. When 3D electrode locations are digitized in situ, the origin, orientation, and measurement unit of the coordinate system MUST be recorded in Cartesian coordinates according to the EMGCoordinateSystem and EMGCoordinateUnits fields in *_coordsystem.json, as described in the Coordinate Systems Appendix. In such cases, EMGCoordinateSystem SHOULD be specified as Other, the EMGCoordinateSystemDescription SHOULD contain a description of the origin and axis orientations of the 3D coordinate system, and the coordinate_system column in *_electrodes.tsv may be omitted.
Measured coordinates in a single coordinate system defined by anatomical landmarks. This approach is suitable for individual electrodes placed close together on a single body part. In this case the *_coordsystem.json file MUST contain fields EMGCoordinateSystem, EMGCoordinateUnits, and EMGCoordinateSystemDescription as described in (1) above. For example, 4 electrodes all placed on the forearm (2 on the volar surface and 2 on the dorsal surface) could be located with coordinates in the following coordinate system:
- x: radial styloid process (RSP) → ulnar styloid process (USP);
- y: oleacranon process → cubital fossa;
- z: RSP-USP → lateral humerus epicondyle
It may be possible to omit the z column when all electrodes are on the same surface (in the above example, if all electrodes were on the volar surface and none were on the dorsal surface). Likewise it may be possible to omit both z and y if all electrodes are colinear along the anatomically defined x axis.
Measured coordinates in multiple anatomically-defined coordinate systems. This approach is suitable for individual electrodes placed on multiple body parts. In this case the *_coordsystem.json file MUST contain a separate, arbitrarily-named JSON object for each coordinate system, each of which MUST contain the fields EMGCoordinateSystem, EMGCoordinateUnits, and EMGCoordinateSystemDescription as described in (1) above. Additionally, the coordinate_system column in *_electrodes.tsv MUST indicate which named coordinate system the coordinate values in that row reflect. For example, *_coordsystem.json may include a coordinate system called "lower-leg" defined by lower leg landmarks for electrodes below the knee, and another called "thigh" defined by upper-leg landmarks for electrodes above the knee. In such a case, entries in the coordinate_system column of *_electrodes.tsv MUST specify either "lower-leg" or "thigh". As in (2) above, it may be possible to omit the z and y columns, depending on the details of the electrode placements.
Measured coordinates in "nested" coordinate systems. This approach is suitable for large electrode grids or similar devices. In this case, measured 2D locations in the x and y columns define the geometry of an electrode grid or group, relative to an arbitrary device-internal origin and axes (this is the "child" coordinate system). The group's placement on the body is then described by selecting an "anchor" electrode and providing its coordinates within a "parent" coordinate system defined in reference to subject anatomy (as in (2) above). The *_coordsystem.json file MUST contain separate, arbitrarily-named JSON objects for each of the parent and child coordinate systems, each containing the fields EMGCoordinateSystem, EMGCoordinateUnits, and EMGCoordinateSystemDescription as described in (1) above. Additionally, each child coordinate system MUST contain an entry ParentCoordinateSystem giving the name of the JSON object that defines the parent (anatomical) coordinate system, and entries AnchorElectrode and AnchorCoordinates that name an electrode and provide its coordinates in the parent coordinate system (respectively). For example, a coordinate system called "forearm" defined by forearm anatomical landmarks (as in (2) above) could be the parent coordinate system for two electrode grids placed on the volar and dorsal surfaces of the forearm. Each grid would have its own coordinate system (named, for example, "volar-grid" and "dorsal-grid") in which coordinates of each electrode are relative to a device-internal origin, such as the lower-leftmost electrode when the device is in a specified orientation. Note that the parent coordinate system may be defined in different units than the child coordinate system; for example, if an anchor electrode was placed 50% of the distance between the ulnar styloid process and cubital fossa, the unit of the parent coordinate system is "percent" and AnchorCoordinates would have a value of 50 for the x coordinate in *_coordsystem.json. Meanwhile, the x column of *_electrodes.tsv gives the device-internal coordinates of the grid electrodes, which may be in a different unit such as "mm". See the coordsystem.json section for further details.

For details of how to specify the coordinate systems in each of these cases, see the coordsystem.json section.

Required columns

The order of the required columns in the *_electrodes.tsv file MUST be as listed below.

Column name	Requirement Level	Data type	Description
name	REQUIRED	string	Name of the electrode contact point. The combination of `name` and `group` MUST be unique. This column must appear first in the file.
x	REQUIRED	number	Recorded position along the x-axis. This column must appear second in the file.
y	REQUIRED	number	Recorded position along the y-axis. This column must appear third in the file.
z	OPTIONAL	number	Recorded position along the z-axis. This column must appear fourth in the file.
coordinate_system	REQUIRED	string	Name of the coordinate system defined in `coordsystem.json` in which the electrode's `x`, `y`, and (optionally) `z` coordinates are given. This column must appear fifth in the file.
type	RECOMMENDED	string	Type of the electrode (for example, cup, ring, clip-on, wire, needle). This column may appear anywhere in the file.
material	RECOMMENDED	string	Material of the electrode (for example, `Tin`, `Ag/AgCl`, `Gold`). This column may appear anywhere in the file.
impedance	RECOMMENDED	number	Impedance of the electrode, units MUST be in `kOhm`. This column may appear anywhere in the file.
group	RECOMMENDED	string or number	Which group of channels this channel belongs to (typically this indicates channels on the same grid, strip, or other device). The combination of `name` and `group` MUST be unique. This column may appear anywhere in the file.
Additional Columns	OPTIONAL	`n/a`	Additional columns are allowed if they are defined in the associated metadata file.

The recording-<label> entity MUST be used to indicate simultaneous acquisition of data from multiple EMG devices, in cases where the devices store data in separate data files. For example:

└─ sub-01/
   └─ ses-01/
      └─ emg/
         ├─ sub-01_ses-01_recording-RectusFemoris_electrodes.tsv
         ├─ sub-01_ses-01_recording-VastusLateralis_electrodes.tsv
         └─ sub-01_ses-01_recording-VastusMedialis_electrodes.tsv

Above, acquisitions are labeled with the target muscle, but other naming schemes are also appropriate. For example, if bipolar and grid EMG devices are used simultaneously, acquisitions may be labeled "bipolar" and "grid", or use the device manufacturer names. For cases of multiple devices recording simultaneously into the same data file, the group column MUST be used to distinguish which electrodes belong to which device.

Except in cases of simultaneous acquisitions from different devices into different data files (as mentioned above), *_electrodes.tsv files SHOULD NOT be duplicated for each data file, for example, during multiple runs of a task. The inheritance principle MUST be used to find the appropriate electrode positions for a given data file. If electrodes are repositioned, it is RECOMMENDED to use multiple sessions to indicate this.

Example `*_electrodes.tsv`

Example *_electrodes.tsv for a 2 by 2 grid of EMG electrodes with 2.5 mm electrode diameter and 10 mm inter-electrode distance.

name  x     y     coordinate_system  group  diameter
001   0.0   0.0   VolarForearm       grid1  2.5
002   10.0  0.0   VolarForearm       grid1  2.5
003   0.0   10.0  VolarForearm       grid1  2.5
004   10.0  10.0  VolarForearm       grid1  2.5
001   0.0   0.0   DorsalForearm      grid2  2.5
002   10.0  0.0   DorsalForearm      grid2  2.5
003   0.0   10.0  DorsalForearm      grid2  2.5
004   10.0  10.0  DorsalForearm      grid2  2.5

Coordinate System JSON (`*_coordsystem.json`)

Template:

sub-<label>/
    [ses-<label>/]
        emg/
            sub-<label>[_ses-<label>][_task-<label>][_acq-<label>]_coordsystem.json

Legend:

For more information about filename elements (for example, entities, suffixes, extensions), follow the links embedded in the filename template.
<matches> is a placeholder to denote an arbitrary (and valid) sequence of entities and labels at the beginning of the filename (only BIDS "raw").
<source-entities> is a placeholder to denote an arbitrary sequence of entities and labels at the beginning of the filename matching a source file from which the file derives (only BIDS-Derivatives).
Filename entities or directories between square brackets (for example, [_ses-<label>]) are OPTIONAL.
Some entities may only allow specific values, in which case those values are listed in <>, separated by |.
_<suffix> means that there are several (>6) valid suffixes for this filename pattern.
.<extension> means that there are several (>6) valid extensions for this file type.
[.gz] means that both the unzipped and gzipped versions of the extension are valid.

This *_coordsystem.json file contains the coordinate system in which electrode positions are expressed. Associated photos can also be provided. The *_coordsystem.json is REQUIRED if the optional *_electrodes.tsv is specified; please see the electrodes description section for important guidance regarding how to specify electrode location.

Fields relating to the EMG coordinate system(s):

Key name	Requirement Level	Data type	Description
EMGCoordinateSystem	REQUIRED	string	Defines the coordinate system for the EMG sensors. See the Coordinate Systems Appendix for a list of restricted keywords for coordinate systems. If `"Other"`, provide definition of the coordinate system in `EMGCoordinateSystemDescription`. Must be one of: `"Other"`.
EMGCoordinateUnits	REQUIRED	string	Units of the coordinates of `EMGCoordinateSystem`. Must be one of: `"m"`, `"mm"`, `"cm"`, `"n/a"`.
EMGCoordinateSystemDescription	RECOMMENDED, but REQUIRED if `EMGCoordinateSystem` is `"Other"`	string	Free-form text description of the coordinate system, typically defining the origin and positive x,y,z axis directions, relative to skeletal landmarks. May also include a link to a documentation page or paper describing the system in greater detail.

The recording-<label> entity MUST be used to indicate simultaneous acquisition of data from multiple EMG devices, in cases where the devices store data in separate data files. Except in cases of simultaneous acquisitions from different devices into different data files (as just mentioned), *_coordsystem.json files SHOULD NOT be duplicated for each data file, for example, during multiple runs of a task. The inheritance principle MUST be used to find the appropriate coordinate system description for a given data file.

Example 1: `*_coordsystem.json` for digitized electrode positions

Here, a coordinate system is defined based on digitized cranial landmarks, and is suitable for EMG electrodes on the face whose locations are digitized with the same equipment as the cranial landmarks:

{
    "EMGCoordinateSystem": "Other",
    "EMGCoordinateSystemDescription": "x: left helix-tragus junction (LHJ) → right helix-tragus junction (RHJ); y: inion → nasion; z: midpoint between mastoid processes → vertex",
    "EMGCoordinateSystemUnits": "m"
}

Example 2: `*_coordsystem.json` for measured electrode positions in a single coordinate system defined by anatomical landmarks

Here, a coordinate system is defined based on percentage of distances between anatomical landmarks of the forearm, and is suitable for localizing individual electrodes on the same body part:

{
    "EMGCoordinateSystem": "Other",
    "EMGCoordinateSystemDescription": "x: radial styloid process (RSP) → ulnar styloid process (USP); y: oleacranon process → cubital fossa; z: RSP-USP → lateral humerus epicondyle",
    "EMGCoordinateSystemUnits": "percent"
}

Example 3: `*_coordsystem.json` for measured electrode positions in in multiple anatomically-defined coordinate systems

Here, separate anatomically-based coordinate systems are defined for electrodes above and below the elbow joint, and each is given a unique name ("Forearm" or "Humerus") which can be referenced in the coordinate_system column of *_electrodes.tsv:

    "Forearm": {
        "EMGCoordinateSystem": "Other",
        "EMGCoordinateSystemDescription": "x: radial styloid process (RSP) → ulnar styloid process (USP); y: oleacranon process → cubital fossa; z: RSP-USP → lateral humerus epicondyle",
        "EMGCoordinateSystemUnits": "percent"
    },
    "Humerus": {
        "EMGCoordinateSystem": "Other",
        "EMGCoordinateSystemDescription": "x: medial humerus epicondyle (MHE) → lateral humerus epicondyle (LHE), y: oleacranon process → cubital fossa, z: MHE-LHE → greater humerus tubercule",
        "EMGCoordinateSystemUnits": "percent"
    }

Example 4: `*_coordsystem.json` with nested/anchored coordinate systems

Here, coordinate systems for the relative locations of electrodes in grids or groups are given in "child" coordinate systems ("BicepGrid", "VolarForearmGrid", "DorsalForearmGrid"), each of which is anchored to a "parent" coordinate system that is defined anatomically:

{
    "Forearm": {
        "EMGCoordinateSystem": "Other",
        "EMGCoordinateSystemDescription": "x: radial styloid process (RSP) → ulnar styloid process (USP); y: oleacranon process → cubital fossa; z: RSP-USP → lateral humerus epicondyle",
        "EMGCoordinateSystemUnits": "percent"
    },
    "Humerus": {
        "EMGCoordinateSystem": "Other",
        "EMGCoordinateSystemDescription": "x: medial humerus epicondyle (MHE) → lateral humerus epicondyle (LHE), y: oleacranon process → cubital fossa, z: MHE-LHE → greater humerus tubercule",
        "EMGCoordinateSystemUnits": "percent"
    },
    "BicepGrid": {
        "EMGCoordinateSystem": "Other",
        "EMGCoordinateSystemDescription": "x-axis left → right, y-axis bottom → top, when grid is oriented with leads at the bottom",
        "EMGCoordinateSystemUnits": "mm",
        "ParentCoordinateSystem": "Humerus",
        "AnchorCoordinates": [40, 70, 0],
        "AnchorElectrode": "E1"
    },
    "VolarForearmGrid": {
        "EMGCoordinateSystem": "Other",
        "EMGCoordinateSystemDescription": "x-axis left → right, y-axis bottom → top, when grid is oriented with leads at the bottom",
        "EMGCoordinateSystemUnits": "mm",
        "ParentCoordinateSystem": "Forearm",
        "AnchorCoordinates": [25, 50, 10],
        "AnchorElectrode": "E1"
    },
    "DorsalForearmGrid": {
        "EMGCoordinateSystem": "Other",
        "EMGCoordinateSystemDescription": "x-axis left → right, y-axis bottom → top, when grid is oriented with leads at the bottom",
        "EMGCoordinateSystemUnits": "mm",
        "ParentCoordinateSystem": "Forearm",
        "AnchorCoordinates": [75, 0, 90],
        "AnchorElectrode": "E1",
    }
}

Photos of the electrode positions (`*_photo.<extension>`)

Template:

sub-<label>/
    [ses-<label>/]
        emg/
            sub-<label>[_ses-<label>][_acq-<label>]_photo.tif

Legend:

For more information about filename elements (for example, entities, suffixes, extensions), follow the links embedded in the filename template.
<matches> is a placeholder to denote an arbitrary (and valid) sequence of entities and labels at the beginning of the filename (only BIDS "raw").
<source-entities> is a placeholder to denote an arbitrary sequence of entities and labels at the beginning of the filename matching a source file from which the file derives (only BIDS-Derivatives).
Filename entities or directories between square brackets (for example, [_ses-<label>]) are OPTIONAL.
Some entities may only allow specific values, in which case those values are listed in <>, separated by |.
_<suffix> means that there are several (>6) valid suffixes for this filename pattern.
.<extension> means that there are several (>6) valid extensions for this file type.
[.gz] means that both the unzipped and gzipped versions of the extension are valid.

Photos of the electrode locations are OPTIONAL. Photos SHOULD include sufficient surrounding context to distinguish anatomical location. For example, photographs of electrodes on the limbs should include at least one adjacent joint. Photos may need to be cropped and/or blurred to conceal identifying features or entirely omitted prior to dataset distribution, depending on obtained consent.

If there are photos of the electrodes, the recording-<label> entity MAY be specified, if separate photos are provided of each EMG device and the devices recorded into separate data files. The ses-<label> entity may be used to specify when the photo was taken.

Example `*_photo.<extension>`

└─ sub-01/
   └─ ses-01/
      ├─ sub-01_ses-01_recording-DorsalForearmGrid_photo.jpg
      └─ ...

photo of EMG electrodes
